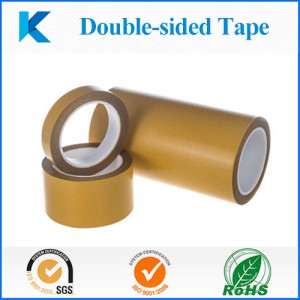

Red/Yellow Bopp liner PET Double-sided tape with acrylic adhesive for plastic and metal parts bonding

Red/Yellow Bopp liner PET Double-sided tape with acrylic adhesive for plastic and metal parts bonding
  • high bond tape soulutions source from www.Kingzom.com

Short Description:

Description PET double-sided tape is made of PET film with acrylic adhesive coating on each side. Structure Features ● Good adhesion ● Excellent die-cutting workability ● Good wetting property ● Temperature and humidity resistance ● High shear resistance ● Long and reliable paste ApplicationsDigital Products such as permanent fixing of camera’s visual frame High temperature resistance, can stand temperature up to 180C Industrial products such as paper and metal processing heat ...


  • Sample: Free
  • Specifications: Custom sizes are available upon request.
  • Product Detail

    FAQ

    Product Tags

    Description

    PET double-sided tape is made of PET film with acrylic adhesive coating on each side.

    Structure

    未标题-4 未标题-7

    Features

    ● Good adhesion
    ● Excellent die-cutting workability
    ● Good wetting property
    ● Temperature and humidity resistance
    ● High shear resistance
    ● Long and reliable paste

    Applications

    • Digital Products such as permanent fixing of camera’s visual frame
    • High temperature resistance, can stand temperature up to 180C
    • Industrial products such as paper and metal processing heat connection
    • Battery compartment permanent fixation
    • Mounting and fixing of switches in nameplate and membrane
    • Earphone gasket mounting, camera lens fixing, electrical wire fixing
    • Microphone dust protection net fixing
    • PCB fixing, LCD frame fixing
    • LCD gasket mounting
    • Battery gasket fixing, battery shell fixing
    • Key pad and hard material fixing
    • Memory card fixing
    • Data sheet

    Data sheet

    CarrierPET
    AdhesiveAcrylic
    ColorTransparent
    Thickness0.08mm/0.1mm/0.205mm (customizable)
    Length50m(customizable)
    Adhesion to Steel Sheet≥17 N/2.5cm
    Static Shearing Force1000g,6.4cm2, 1440min+
    Temperature Resistance180°C
    Elongation at break50%

    NOTE: The above data are measured data of the average value, but does not mean that the value of the product, for reference! It’s also a good replacement for Tesa 4965.

    Please feel free to contact us for sample!
