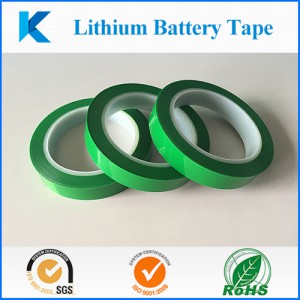

Green PET tape lithium battery terminal for insulation protection

Green PET tape lithium battery terminal for insulation protection
  • battery terminal tape soulutions source from www.Kingzom.com

Short Description:

Description Lithium battery tape is made of PET film with acrylic adhesive tape, which is widely used in lithium battery insulation protection, binding and fixation.   StructureFeaturesAcrylic adhesive Tape surface cleanliness, good toughness High temperature, solvent resistant, stable and reliable Adhesion is moderate, no residual glue Unwinding force is moderate, suitable for different process requirementsApplicationsLithium battery insulation tape for cylindrical, square and o...


  • Sample: Free
  • Specifications: Custom sizes are available upon request.
  • Product Detail

    FAQ

    Product Tags

    Description

    Lithium battery tape is made of PET film with acrylic adhesive tape, which is widely used in lithium battery insulation protection, binding and fixation.

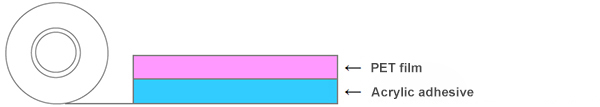

    Structure

    Lithium Battery tape

    Features

    • Acrylic adhesive
    • Tape surface cleanliness, good toughness
    • High temperature, solvent resistant, stable and reliable
    • Adhesion is moderate, no residual glue
    • Unwinding force is moderate, suitable for different process requirements

    Applications

    • Lithium battery insulation tape for cylindrical, square and other lithium-ion batteries core ears of the insulation protection and fixation.
    •  Special for Lithium,Nicke land Cadmium
    • Aluminum shell/ steel shell/Soft package pool electrode anode protection and batteries end parts’ insulation fixed

    Data sheet

    CarrierPET
    AdhesiveAcrylic
    ColorGreen
    Thickness0.03mm
    Length100m (customizable)
    Tensile Strength80 N/25mm
    Elongation≥30%
    Temperature Resistance-20~130°C
    Dielectric Strength Breakdown3 KV
    Peel Strength to steel5 N/25mm

     If you need customized sizes or die cut parts please feel free to contact us.
