Short Description:

Product description Double sided thermal conductive tape is made from the acrylic polymer filled with heat conductive ceramic powder and silicone adhesive composition, with high thermal conductivity and insulation properties, and has flexibility, compressibility, adhesion, strong adhesion. Can be close to the heat source devices and heat sink, heat conduction fast. Features ● Good adhesion and thermal conductivity ● Excellent cooling effect ● Wide working temperature range ● Various thickn...


  • Sample: Free
  • Specifications: Custom sizes are available upon request.
  • Product Detail

    FAQ

    Product Tags

    Product description

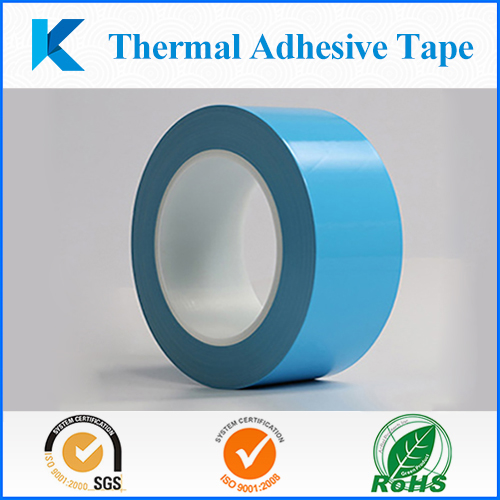

    Double sided thermal conductive tape is made from the acrylic polymer filled with heat conductive ceramic powder and silicone adhesive composition, with high thermal conductivity and insulation properties, and has flexibility, compressibility, adhesion, strong adhesion. Can be close to the heat source devices and heat sink, heat conduction fast.

    Features

    ● Good adhesion and thermal conductivity
    ● Excellent cooling effect
    ● Wide working temperature range
    ● Various thicknesses for choice

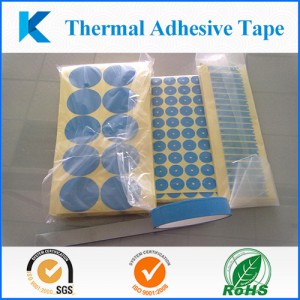

    ● Break-down resistance and easy die-cutting
    ● Meet ROHS and UL the environmental

    Applications

    ● LED light bar components and metal frame assembly
    ● DDR-RAM module and heat sink assembly
    ● Electronic components: IC, COP, CPU, MOS
    ● M / B, PS, PCB, LCD, PDP, PC, PPR
    ● Replacing screws, fasteners and other fixed means

    Thermal-Adhesive-Tape4

    Structure

    Thermal Adhesive Tapes

    Physical properties (Thermal adhesive tape)

     Item No.Thickness

    (mm)

    180°PeelStrength(PSTC-101)(N/25mm)Insulation Strength(ASTM D149)(KV)Thermal Impedance@40PSI(AMD2240)(C*in2/W)Thermal Conductivity(ASTM D22470)(W/m-k)Temperature Range
    KZ-05N0.05±10%>10.781.570.4141.20-20℃~120℃
    KZ-10N0.10±10%>13.722.220.558
    KZ-15N0.15±10%>13.722.550.654
    KZ-20N0.20±10%>15.684.291.070
    KZ-25N0.25±10%>15.685.01.173
    KZ-30N0.30±10%>15.685.01.234
    KZ-40N0.40±10%>15.685.01.525

    Note: Custom sizes are available upon request and supply free sample for test.
