Electrical Insulating Skived Teflon PTFE Tape Using Fluoroplastic Film with Silcon Adhesive

Electrical Insulating Skived Teflon PTFE Tape  Using Fluoroplastic Film with Silcon Adhesive
  • skived tape
  • Telfon tape

Short Description:

Skived High Density Tape made with Teflon – Silicone Adhesion Product Description Kingzom Teflon tape are pressure sensitive tapes using a skived and tensilized PTFE film that is coated with high temperature silicone adhesive. The tensilized film provides higher tensile strength, lower elongation and higher dielectric strength than regular skived film. StructureSkived Teflon PTFE Tape FeatureSuperior flame resistance. Superior in mold-releasing and sliding property. Non-adhesiv...


  • Sample: Free
  • Specifications: Custom sizes are available upon request.
  • Product Detail

    FAQ

    Product Tags

    Skived High Density Tape made with Teflon – Silicone Adhesion

    Product Description

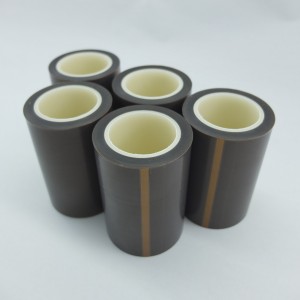

    Kingzom Teflon tape are pressure sensitive tapes using a skived and tensilized PTFE film that is coated with high temperature silicone adhesive. The tensilized film provides higher tensile strength, lower elongation and higher dielectric strength than regular skived film.

    Structure

     Skived Teflon PTFE Tape

    Skived Teflon PTFE Tape

     Feature

    • Superior flame resistance.
    • Superior in mold-releasing and sliding property.
    • Non-adhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water-shedding), low friction coefficient and non-adhesiveness.
    • Can smoothly adhere, wind, band and seal, just like regular adhesive tapes.

    Application

    • For heat-resistant masking.
    • For heat-sealing.
    • For heat-resistant electrical insulation

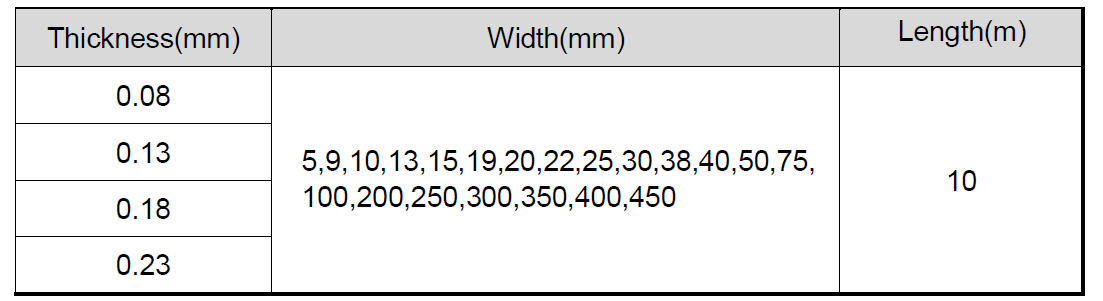

    Size

    Kingzom teflon tape2

     Custom widths, die-cut parts and tape with liner available.

    TYPICAL PROPERTIES

    Property

    Test Method

    15-2HD

    15-3HD

    15-5HD

    Backing Material



    PTFE Film

    Film Thickness (in.)



    .002

    .003

    .005

    Adhesive System



    SILICONE

    Adhesive Thickness (in.)



    .0015

    Adhesion (oz/in)

    ASTM-D 1000

    25

    25

    30

    Tensile Strength (psi min)

    ASTM-D 3759

    11,000

    13,000

    7,500

    Elongation (%)

    ASTM-D 3759

    100

    100

    100

    Dielectric Strength (volts/mil)

    ASTM-D 149

    4,000

    3,000

    2,700

    Max. Operating Temp. (ºF)

    -100 to 500ºF



    Contact us for more details.
