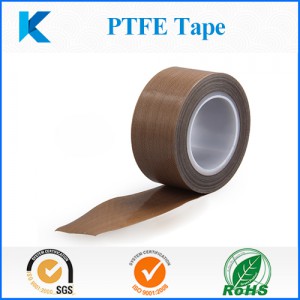

High temperature PTFE film/cloth/fabric tape with adhesive for heat sealing

High temperature PTFE film/cloth/fabric tape with adhesive for heat sealing
  • PTFE fabric tape soulutions source from www.Kingzom.com

Short Description:

Description High temperature PTFE fabric tape is using glass cloth as a substrate to impregnate a PTFE film. It is single surface treated and coated with a silicone adhesive, which exhibits excellent heat resistance and mechanical strength. It is the unque combination of  excellent heat resistance, slow release and mechanical strength. The tape an improve the heat-resistant device and it has slow-release property. It is weather resistant and age resistant. The PTFE tape can be used under -60...


  • Sample: Free
  • Specifications: Custom sizes are available upon request.
  • Product Detail

    FAQ

    Product Tags

    Description

    High temperature PTFE fabric tape is using glass cloth as a substrate to impregnate a PTFE film. It is single surface treated and coated with a silicone adhesive, which exhibits excellent heat resistance and mechanical strength. It is the unque combination of  excellent heat resistance, slow release and mechanical strength. The tape an improve the heat-resistant device and it has slow-release property. It is weather resistant and age resistant. The PTFE tape can be used under -60~280°C temperature.

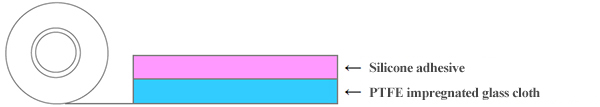

    Structure

    PTFE

    Features

    • UL510 certification.
    • Superior mold release and sliding properties.
    • High Voltage Insulation up to 7KV.
    • Good holding property at elevated temperatures and dimensional stability.
    • The non-adhesive side exhibits excellent characteristics of PTFE.
    • Electrical properties, heat resistance, weather ability, chemical resistance, water resistance and non-adhesion.

    Applications

    • For heat-resistant masking.
    • For electronic insulation, High Voltage Cable Wrapping
    • For heat-sealing of food and medicine.(including thermoplastic, compositing, thermoplastic sealing, electronic and electrical industry)
    • For heat-resistant electrical insulation.
    • Chute and hopper linings.
    • Surface coating of sizing rolls for dying and resin treatment.
    • Masking protection for Plasma spray.
    • Other applications which require heat resistant, wearing-resisting, anti corrosion, and anti-adhesive.

    Data sheet

    ItemsUnitKZ-6338Test Method
    Thicknessmm0.13/0.15/0.18/0.3Compatible with JIS C 2107
    Tensile strengthN/19mm500
    Adhesive strength25℃N/19mm8.2
    100℃3.6
    150℃2.5
    Unwinding forceN/19mm5.7
    Temperature range°C-60~280-

     If you need customized sizes or die cut parts please feel free to contact us.
