High quality polyimide film silicone tape for SMD packing and transformer manufacturing

High quality polyimide film silicone tape for SMD packing and transformer manufacturing
  • polyimide film silicone tape soulutions source from www.Kingzom.com
  • transformer tape soulutions source from www.Kingzom.com
  • Anodizing tape soulutions source from www.Kingzom.com

Short Description:

Description Polyimide film silicon tape is made of  polyimide film with  high-performance silicone pressure-sensitive adhesive. The polyimide tape has an excellent balance of property over various temperature and has high dielectric strength, which protects  electronic parts  against static voltages.  StructureFeatures ● High performance silicone adhesive ● Excellent electrical insulation ● Wide operating temperature range up to 280°C ● Resistance to chemical attack ● Easy peel off and ...


  • Sample: Free
  • Specifications: Custom sizes are available upon request.
  • Product Detail

    FAQ

    Product Tags

    Description

    Polyimide film silicon tape is made of  polyimide film with  high-performance silicone pressure-sensitive adhesive. The polyimide tape has an excellent balance of property over various temperature and has high dielectric strength, which protects  electronic parts  against static voltages.

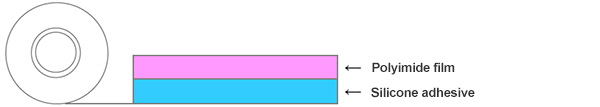

    Structure

    PCB

    Features

    ● High performance silicone adhesive
    ● Excellent electrical insulation
    ● Wide operating temperature range up to 280°C
    ● Resistance to chemical attack
    ● Easy peel off and no glue residue
    ● High strength backing provides superior resistance to puncture and tearing

    Applications

    ● Protection of Printed Circuit Boards during wave soldering
    ● Insulation on Transformers, Motors and Coils
    ● PCB, SMT masking protection in electronics
    ● High temperature powder coating
    ● Etching
    ● Fiber Optics Cable
    ● 3D printing
    ● Semiconductor Manufacturing
    ● Automotive reversing radar and sensors

    Data sheet

    CarrierPolyimide film
    AdhesiveSilicone
    ColorAmber/Black/Red
    Thickness0.06mm (customizable)
    Length33m
    Widthcustomizable
    Elongation≥50%
    Tensile Strength150 N/25mm
    Temperature Resistance280°C
    Adhension8 N/25mm
    Voltage Withstand5 KV
    Insulate ClassH

    It’s also a good replacement for 3M 5413.

    Note: Custom sizes are available upon request and supply free sample for test.
