Short Description:

Description Single-coated Graphite dhesive tape with matte black color special printed PET film carrier and surface has superior anti-fingerprint. These products facilitate thinner electronic equipment, as tapes thickness are 0.005-0.03 mm (0.19 – 1.18 mil).  Features 1) Very thin and suitable for adhesion in spaces with limited clearance. 2) Adheres strongly to various substrates. 3) The minimizes dust emission by using PET release liner and plastic core. 4) Resistant to stains such as...


  • Sample: Free
  • Specifications: Custom sizes are available upon request.
  • Product Detail

    FAQ

    Product Tags

    Description

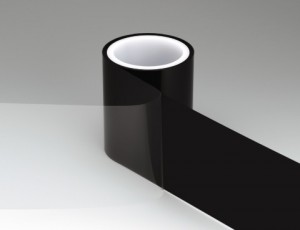

    Single-coated Graphite dhesive tape with matte black color special printed PET film carrier and surface has superior anti-fingerprint. These products facilitate thinner electronic equipment, as tapes thickness are 0.005-0.03 mm (0.19 – 1.18 mil).

     Features

    1) Very thin and suitable for adhesion in spaces with limited clearance.

    2) Adheres strongly to various substrates.

    3) The minimizes dust emission by using PET release liner and plastic core.

    4) Resistant to stains such as fingerprints due to special matte anti-fingerprint treatment tape on the back side.

    5) Halogen free. (*Chlorine compounds are purposely not used.)

    Structure

    Graphite Tape Structure















    Application

    Protecting and masking of mobile device and parts.

    Graphite Tape appication2Graphite Tape application2

    Datasheet

    Thickness180° peeling strength (to stainless steel)
    0.005 mm / 0.19 mil2.0 N/20mm / 9 oz/in
    0.01 mm / 0.39 mil3.1 N/20mm / 14 oz/in
    0.02 mm / 0.78 mil8.2 N/20mm / 37 oz/in
    0.03 mm / 1.18 mil10.2 N/20mm / 46 oz/in

    [Remarks]

    * Measured by peeling in a 180° direction at a speed of 300 mm/min with 0.025 mm (0.98 mil) PET lining.

    * The figures are a sample of observed values, not guaranteed performance.
